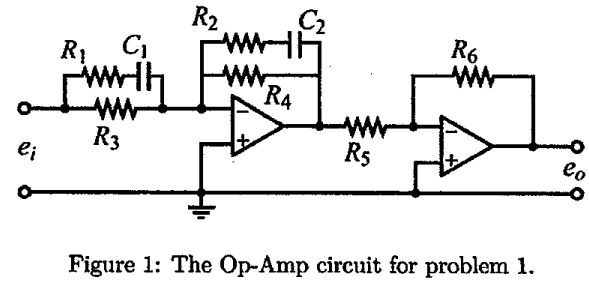

1. Consider the operational-amplifer circuit as shown in Figure 1. Which of the following parameter assign- ,ments implement a lead-lag compensator

?



(A) R1 = 2MΩ, R2 = 500kΩ, R3 = 8MΩ, R4 = 300kΩ,R5 = iMn, and R6 = 1MΩ.
(B) R1= 2MΩ, R2 = 200kΩ, R3 =  8MΩ, R4 = 300kΩ, R5 = 1MΩ, and R6 = 1MΩ.
(C) R1 = 2MΩ, R2 = 200kΩ, R3 = 8MΩ,R4 = 300kΩ,R5 = 3MΩ, and RΩ = 1MΩ.
(D) C1 = 0.1μF and C2 = 0.5μF.
(E) C1 = 0.5μF and C2= 0.1μF.
