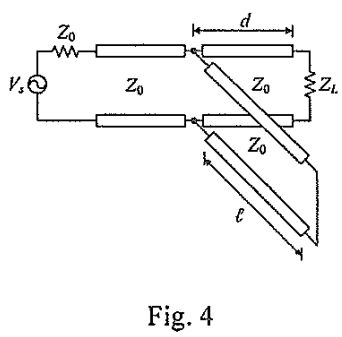

38. A 50-Ω transmission line is connected to a load of impedance ZL = 35 + j80Ω. Find the position d and length

 of ashort-circuited stub required for impedance matching, as shown in the Fig. 4.


(A)

d= 0.016λ,

= 0.076
(B)

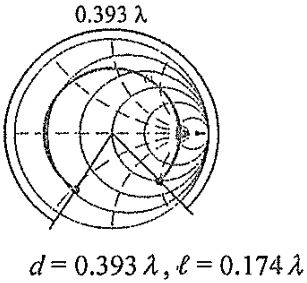

(C)

d= 0.266λ,

= 0.0761；
(D)


(E) It is impossible to match the load using the single-stub matching circuit.

參考答案

答案：[無官方正解]
難度：計算中-1
